OXIDATION STABILITY - RANCIMAT

Code: 11072


COMPLIANCE


The Rancimat method is included in various national and international standards, such as:


• AOCS Cd 12b-92 (AOCS – American Oil Chemists’ Society)


Sampling and analysis of commercial fats and oils: Oil Stability Index


• ISO 6886 Animal and vegetable fats and oils – Determination of oxidation stability(accelerated oxidation test)


• 2.4.28.2-93 Fat stability test on Autoxidation. CDM, Japan


• Swiss Food Manual (Schweizerisches Lebensmittelbuch), section 7.5.4


• EN 14214


• EN 14112

APPLICATION


To determine oxidation stability of natural oils and fats, food & cosmetics,Biodiesel, FAME




• EN 14112APPLICATION :


To determine oxidation stability of natural oils and fats, food & cosmetics,


Biodiesel, FAME


COMPLIANCE :


The Rancimat method is included in various national and internationals


standards, such as:


• AOCS Cd 12b-92 (AOCS – American Oil Chemists’ Society)


Sampling and analysis of commercial fats and oils: Oil Stability Index


• ISO 6886


Animal and vegetable fats and oils – Determination of oxidation stability


(accelerated oxidation test)


• 2.4.28.2-93 Fat stability test on Autoxidation. CDM, Japan


• Swiss Food Manual (Schweizerisches Lebensmittelbuch), section 7.5.4


• EN 14214


• EN 14112

Got questions? get a call back from us
We are also available on Whatsapp between 11 am to 6 pm

P.CODE   MODELS     DESCRIPTION

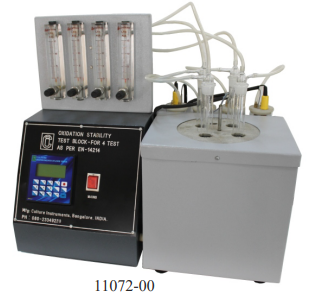

11072-00         ROS-4A       Automatic With Auto-detection of Induction time Fully Automatic with colour touch screen user interface, PC interface,Data logging and Inbuilt air supply. 100% GLP Compliance


11072-03         ROS-6AP         - DO - 6 TEST


11072-04         ROS-8AP         - DO - 8 TEST


STANDARD MODEL SPECIFICATIONS/FEATURES


* Body Construction : SS 304


* System Load : 1 KW( 4 TEST)


* Heating block : Solid aluminium heating block


* Temp. Range : 50°C to 150°C


* Temp. Control Accuracy : + 0.5°C


* Power : 230V , Single Phase, 50 Hz.


* Display of Conductivity values for all stations


* Automatic determination of Induction time


* Manually variable air flow rate with rotameters


* Serial Printer interface

AUTOMATIC MODEL SPECIFICATIONS


* Temp. Range : 50°C to 250°C


* 8 Test unit with 2 independant control heating blocks


* Graphic Colour Touch Screen based user interface


* 100% GLP compliance


* Automatic End point detection and recording


* Self Diagnostic features


* USB based data transfer


* Inbuilt Air Compressor


* Event Logging


* Datalogging


* LAN based pc interface


* Online graphical representation of time vs conductivity


* Remote diagnostic Capability

OPTIONALS & ACCESSORIES


* Calibration of Temperature and Conductivity


* Spare Sample vessel


* Spare conductivity vessel


* Spare Conductivity sensor
