'CI' PENCIL HARDNESS TESTER

Code: 10005-00

COMPLAINCE:

Conforming to JIS K 5600, ASTM D3363 and ISO 15184.

APPLICATION:


The ‘CI’ Pencil Hardness Tester is a simple and traditional method to


test the scratch hardness of coatings.




Got questions? get a call back from us
We are also available on Whatsapp between 11 am to 6 pm

DESCRIPTION AND CONSTRUCTION:


In this test, pencils in the range of 6B to 6H hardness grade are used. The pencil is moved scratching over the surface under a 45 deg. angle in a specific carriage with a constant pressure / force, using progressive hardness pencils.The surface will be variably damaged, in function of the pencil hardness,thus pass / fail or hardness to failure evaluations are possible. The harder the pencil the lighter the mark, and the softer B-grade leads tend to create darker colors and smear easily. The Block comes with Built in spirit level.


Available in 3 different models:

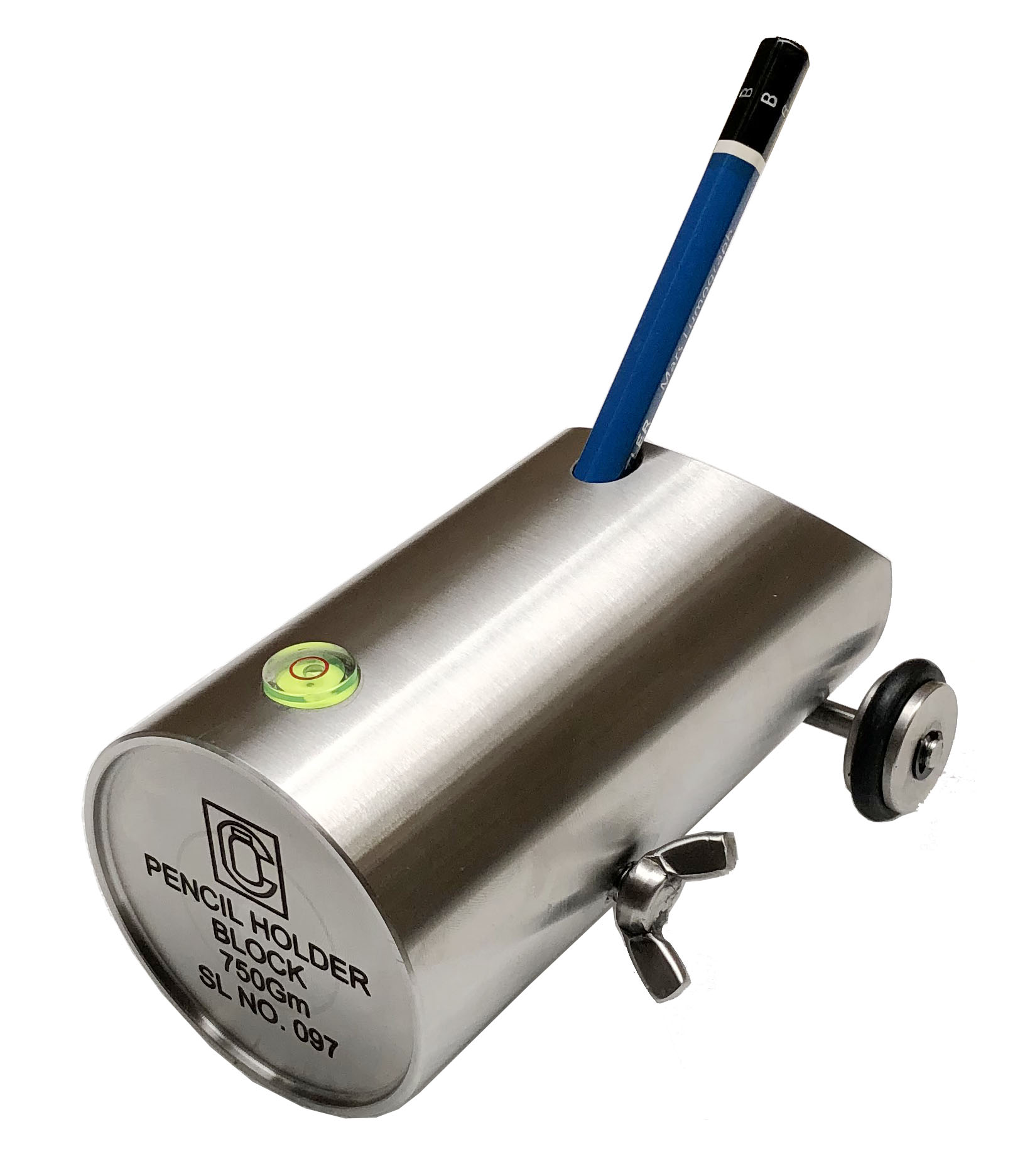

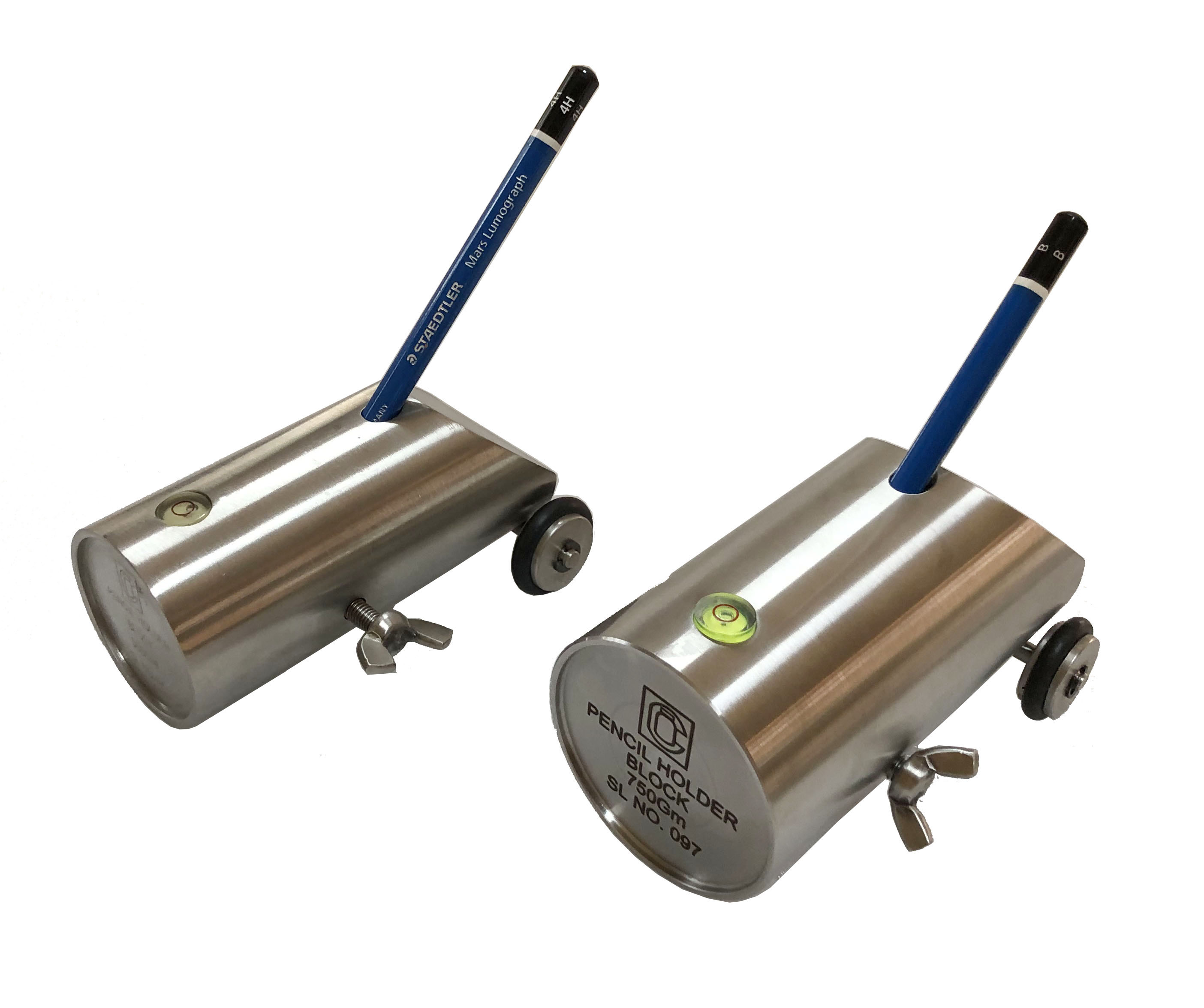

Carriage block with built in spirit level. 500gm/5N       CODE:10005-00


Carriage block with built in spirit level. 750gm/7.5N               10005-04


Carriage block with built in spirit level. 1000gm/10N              10005-05


MITSUBISHI Hardness pencils set of 14 pencils 6B to 5H.    10005-01


MITSUBISHI Hardness pencils set of 20 Pencils 9B TO 9H. 10005-02
