'CI' HUMIDITY CABINETS

Code: 12017

Humidity Cabinets (Model Hc-185&Hc-1000 )

Applications

Product Conditioning, Performance Testing, Environmental Simulation, Storage, Evaluation Etc., Used In : Pharmaceuticals, Cosmetics Industry, Defence And Aerospace, Chemical Industry, Paint, Coating & Printing Industry, Rubber Industry, Plastic Industry, Packaging Industry Etc.

Got questions? get a call back from us
We are also available on Whatsapp between 11 am to 6 pm

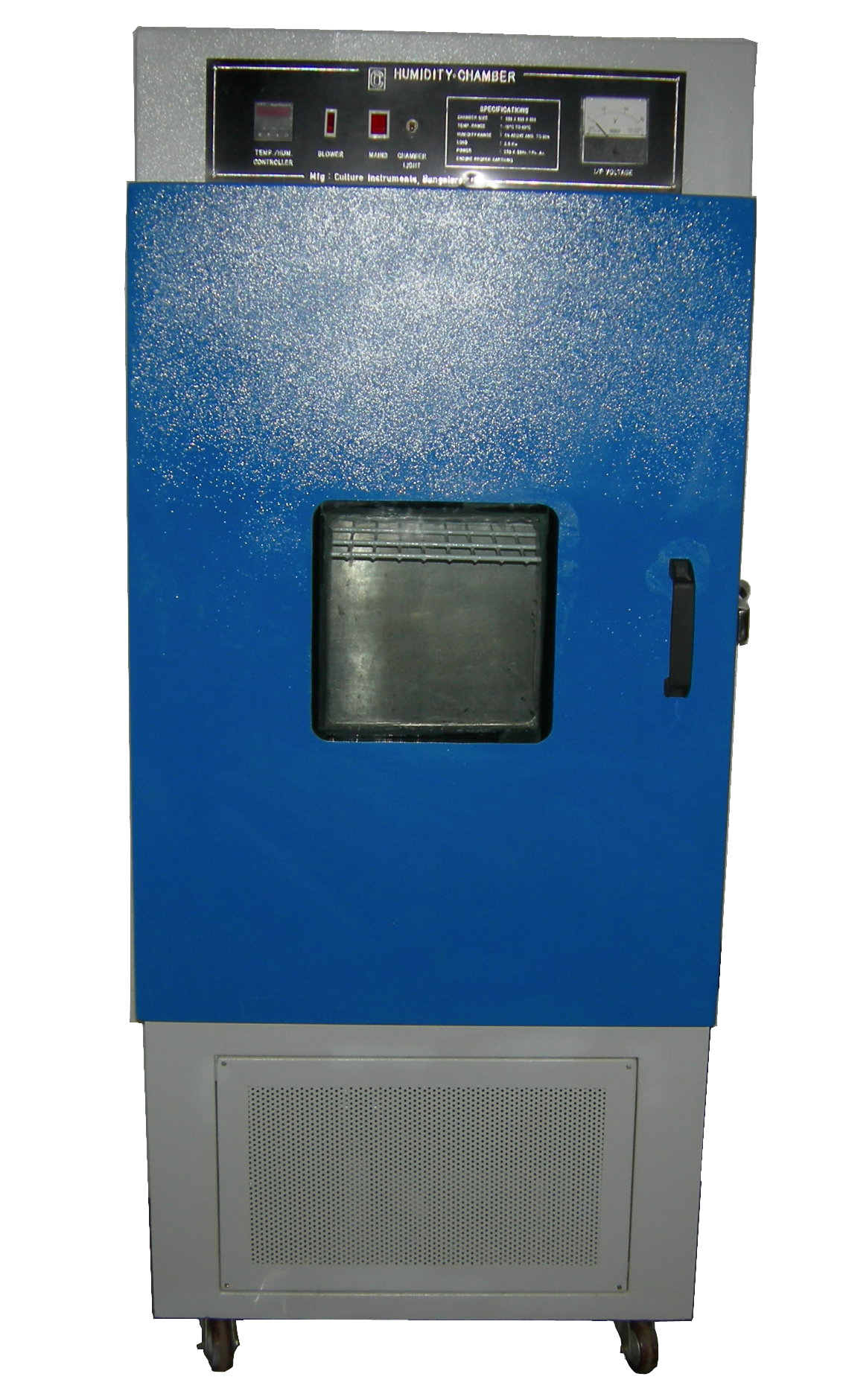

‘CI’ Humidity chamber creates a climate of temperature and humidity.


Each chamber is designed for high stability climate tests, conditioning


or ageing.


It is used in various fields like pharmaceuticals, cosmetics industry,


defense and aerospace, chemical industry, paint coating & printing


industry, rubber industry, plastic industry, packaging industry etc.


DESCRIPTION AND CONSTRUCTION

‘CI’ Humidity chamber creates a climate of temperature and humidity.


Each chamber is designed for high stability climate tests, conditioning


or ageing.


It is used in various fields like pharmaceuticals, cosmetics industry,


defense and aerospace, chemical industry, paint coating & printing


industry, rubber industry, plastic industry, packaging industry etc.


STANDARD FEATURES :


Double / Triple Walled construction, Inner Chamber made of thick Gauge, Matt finished SS 304/316, Outer Body made of CR sheet, Powder coated. Programmable Microprocessor based temperature cum humidity controller, RTD sensor (Wet and Dry principle), Adjustable Rod mesh/Perforated trays and illumination, Optional Refrigeration system.


* Temp. Range          : Ambient to 65°C (BASIC MODEL)


                                  : 10°C to 65°C (REFRIGERATED MODEL)


                                  : -10°C to 130°C (REFRIGERATED MODEL)


                                  : -30°C to 130°C (REFRIGERATED MODEL)


* Temp. Resolution    : 0.1°C


* Accuracy                 : ± 1°C

* Humidity Range      :+ 5% above amb. to 98% RH (BASIC MODEL)

* Humidity Resolution: 0.1% RH

* Accuracy : ± 5%

* Operation : 230V 50Hz, single phase/3 phase


MODEL                    SIZE                          TRAYS                 P.Code


* HC- 80               350x380x600mm              2                        12017-01


* HC-165              500x380x900mm              2                        12017-02


* HC-265              600x500x900mm              2                        12017-03


* HC-330              600X550X1000mm            3                      12017-04


* HC-500             600X850X1000mm             3                      12017-05


* HC-1000          1000X1000X1000mm          3                      12017-06


ACCESSORIES & SPARES


* Programmable digital timer


* Data recording system (usb based)


* Automatic boiler water level control & alarm


* Automatic water level control for wet bulb sensor reservoir.


* Fully integrated control system with touch screen based control


* Spare trays/racks


* Access port at the side (50mm).


* De-humidification system for Rh up to 40%.


* Door lock


* Door open sensor


* Outer Body made of SS 304 instead of CR sheet


* CUSTOM BUILT SIZES AVAILABLE ON REQUEST




: 40% TO

98% RH
