'CI' FLOW CUP VISCOMETER (DIN)

Code: 10002-31



COMPLIANCE:

* Standards conforming to ASTM D 4212

APPLICATION:

These cups are generally used for quick check of product flow during application or production.They are suitable for paint and inks.






Got questions? get a call back from us
We are also available on Whatsapp between 11 am to 6 pm


FLOW CUP VISCOMETERS

‘CI’ Manufactures and Supplies wide range of Viscosity Flow cups and Dip cups.

The ‘CI’ Flow cups, are designed to perform quick viscosity and consistency evaluations of newtonian or near newtonian products.Viscosity is nothing but thickness or resistance to pouring, or in other words viscosity is the measure of resistance to flow.The measured viscosity is generally expressed in seconds.

* Provide good degree of accuracy and repeatability.

* Simple and easy to use.

* These cups cover a wide range of viscosities in accordance with international standards.

* They are made of high quality Aluminium / Brass,

* Stainless Steel inner orifice.

* Standards conforming to ASTM / BS / DIN / BIS / ISO / EN / AFNOR.

* Each cup is engraved with serial number, standard and type

* All cups come with our confirmatory certificate.

* To be used with stand.

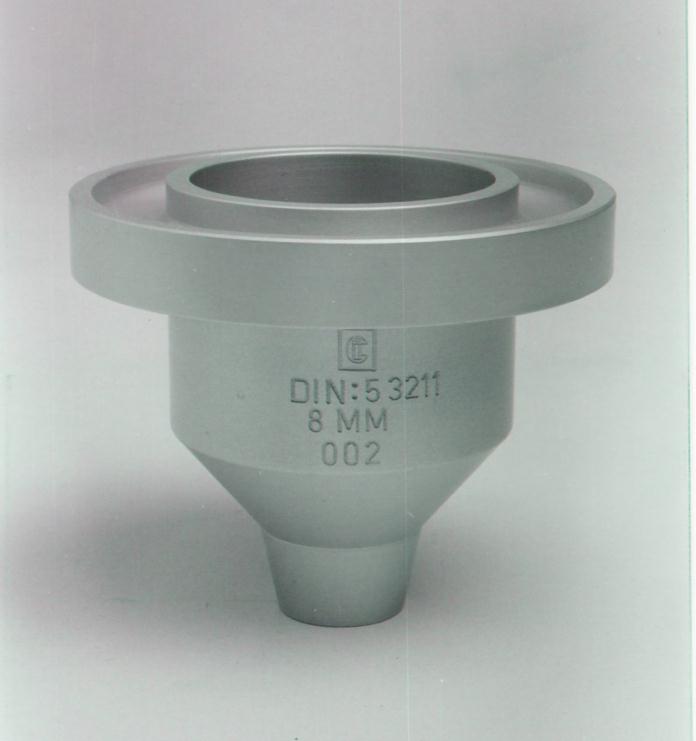

DIN VISCOSITY FLOW CUP



STANDARD       NO.              ORIFICE                 CODE


                                              DIA. (mm)            Aluminum


                                2                        2                           10002-31


                                3                        3                           10002-32


                                4                        4                           10002-33


DIN 53211               6                        6                           10002-34


                                8                        8                           10002-35

                               10                      10                          10002-36
