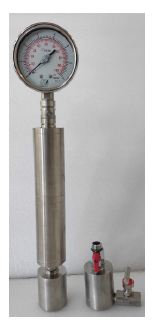

REID VAPOUR PRESSURE TEST APPARATUS

Code: 11025

COMPLIANCE


ASTM D323, D1267; GPA 2140; IP 69, 161; ISO 3007, 4256;51754; FTM 791-1201 DIN 51616,*With modifications if and where necessary

APPLICATION


To determine the gauge pressure of volatile petroleum products like crude oil,LPG, Gasoline etc.

Got questions? get a call back from us
We are also available on Whatsapp between 11 am to 6 pm

INSTRUMENT DESCRIPTION AND CONSTRUCTION

* Temp. Range : Above ambinet to 100ºC.


* Accuracy: + 0.2 ;


* Resolution : 0.1ºC

* Inner chamber made of Stainless Steel



* Outer of powder coated CR sheet.


* Provided with SS clamps for test vessel holding


* Removable control assembly for ease of servicing.


(consisting of heater, sensor, controller and stirrer)


* Operation on 230V, 50Hz / 115V, 56/60Hz 1 Ph, AC.


MODELS


11025-00      RVP-1        Bath for 1 test vessels


11025-01      RVP-2        Bath for 2 test vessels


11025-02      RVP-3        Bath for 3 test vessels

11025-03      RVP-4        Bath for 4 test vessels


STANDARD ACCESSORIES/PARTS


11025-00/01/02/03       Test Bath


11025-04                      Vapour chamber


11025-05                      Liquid chamber one opening


11025-06                      Pressure Gauge 0-15psi


11025-07                      Pressure Gauge 0-30psi


11025-08                      Pressure Gauge 0-45psi


OPTIONAL ACCESSORIES


11025-05       Bleeder Valve


11025-06       Transfer connection


11025-07       Liquid Chamber double opening


11025-08       Flexible Tubing for LPG connection


11025-09       Full range Digital Pressure Gauge


11025-10       Automatic Water low level cutoff


11025-11       PC interfaced Logger for pressure and temperature.



11025-09       Pressure Gauge 0-100psi
